REMOVE/REPLACE BAND BLADE ASSEMBLY MOTOR

TM 11-7035-203-23

4-15. REMOVE/REPLACE BAND BLADE ASSEMBLY MOTOR

INITIAL SETUP

Common Tools

q Tool kit

Remove

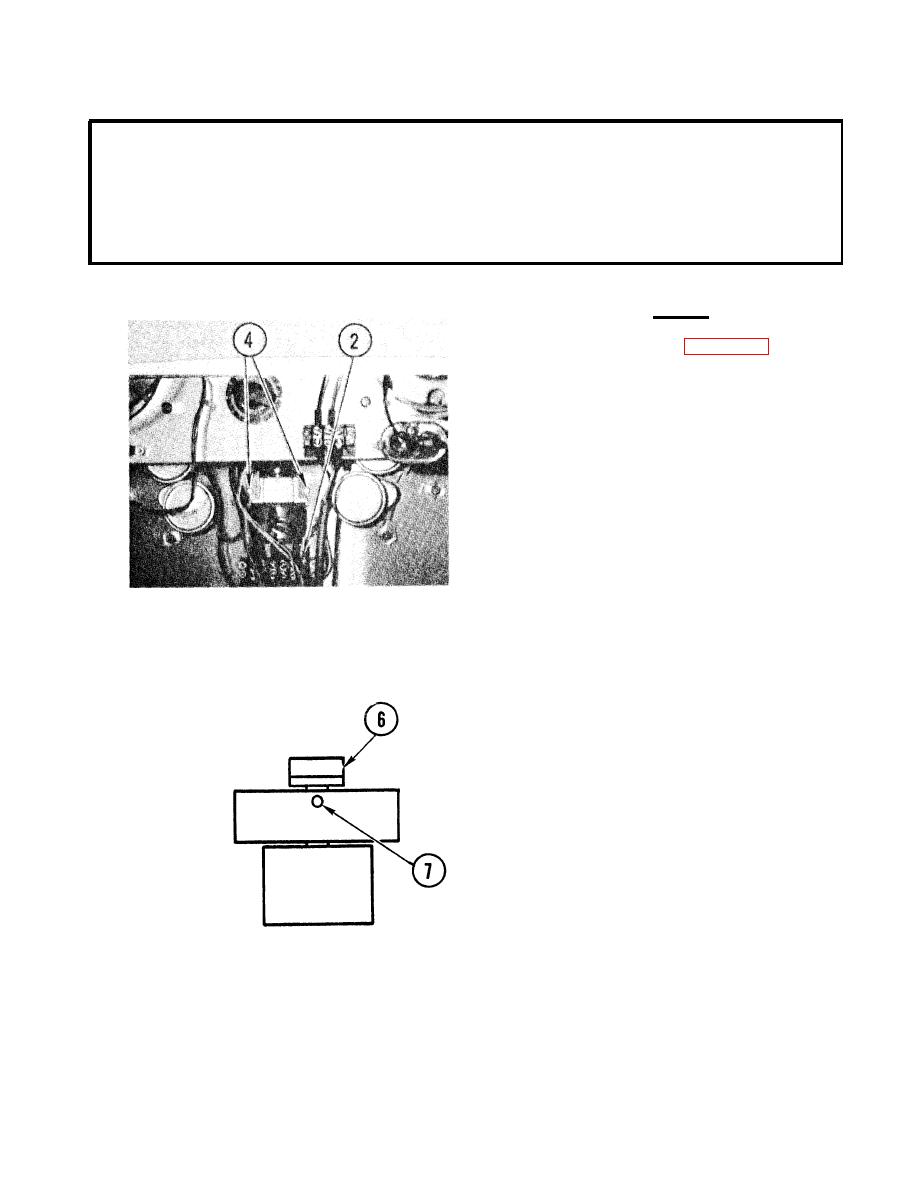

1. Open tape cleaner (para 4-ll).

2. Remove motor wires from terminal

board AITB1.

3. Remove band blade assembly cover.

Hold band blade assembly in place

against front panel.

4. Reach into rear and remove mounting

bolts holding band blade assembly to

front panel.

5. Lift band blade assembly clear of

tape cleaner and place on work

surface.

6. Turn band blade assembly driven

roller until setscrew is visible

through hole in casting.

7. Loosen setscrew and remove motor.

4-25
