REMOVE/REPLACE BAND ON BAND BLADE ASSEMBLY (CONT)

TM 11-7035-203-23

4-14. REMOVE/REPLACE BAND ON BAND BLADE ASSEMBLY (CONT)

Replace

WARNING

Band blade is very sharp. Use care

in handling.

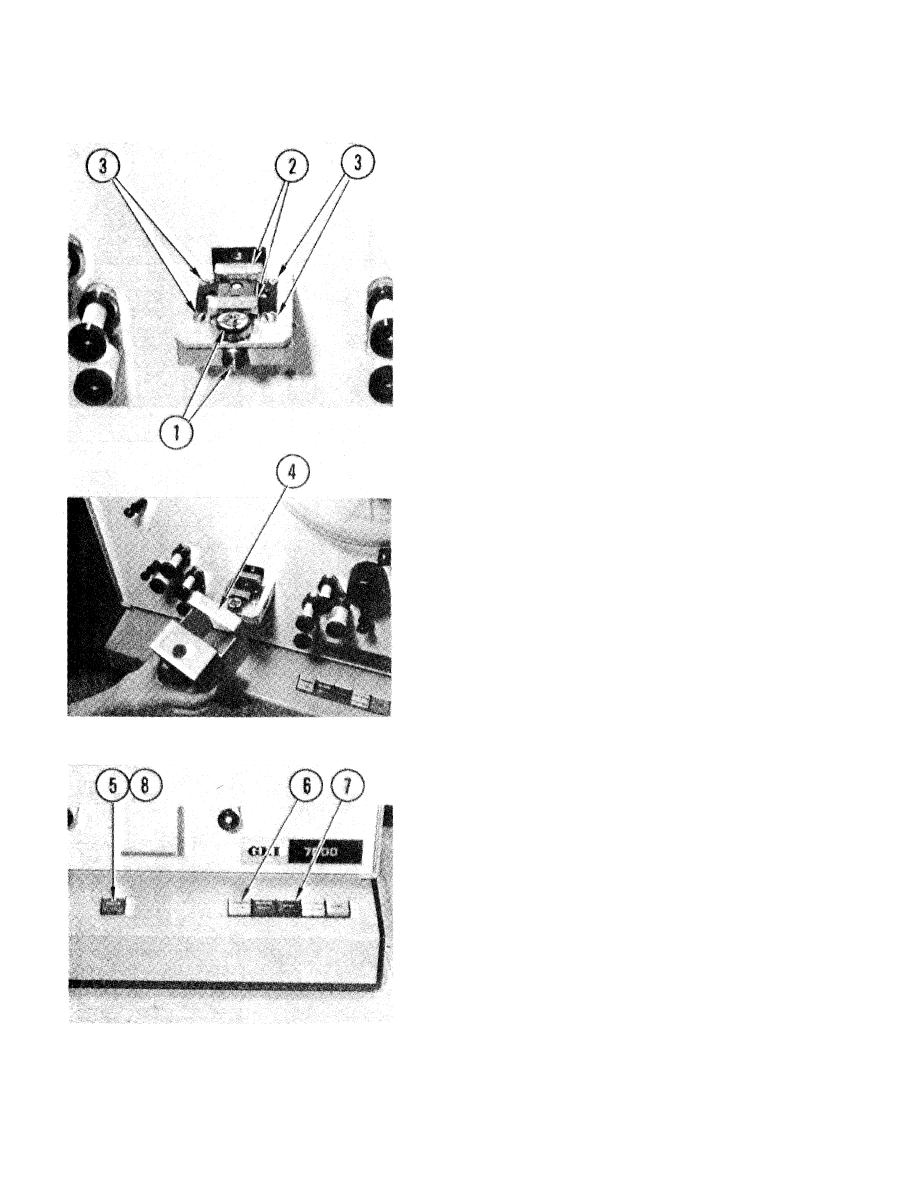

1. With one hand, push in plunger.

With the other hand, push new band

onto assembly. Release plunger.

2. Push on band covers.

3. Tighten screws.

4. Push on cover.

5. Press POWER on.

6. Press FORWARD.

7. Wait about 30 seconds for new band

to seat, then press STOP.

8. Press POWER off.

4-24
