BUTT HINGE ON FLOWRATE METER AND ASSEMBLY BRACKET. |
|
||
| ||||||||||
|
|
 TM 3-6665-329-13&P
This task covers:
Removal.
a.
Installation.
b.
INITIAL SETUP
Tools:
Electronic equipment tool
kit TK-105/G

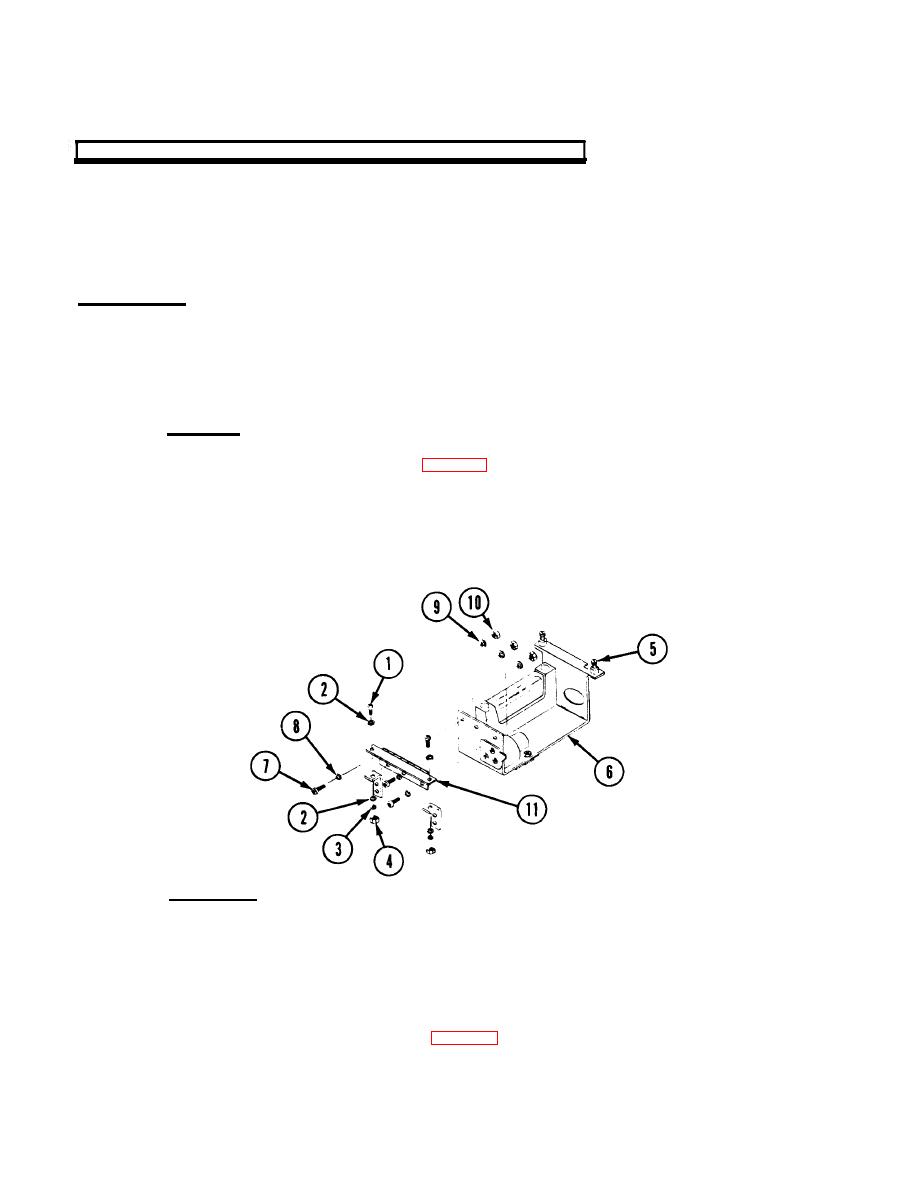

Removal.
a.
(1)
Remove lid and panel assembly (para 3-11b steps 1 and 6).
(2)
Remove two screws (1), four flatwashers (2), Iockwashers (3) and nuts (4).
(3)
Unscrew two screws (5) and remove flowrate meter and bracket assembly (6).
(4)
Remove three screws (7), flatwashers (8), Iockwashers (9), nuts (10) and hinge (11).
Installation
b.
Install hinge using three screws (7), flatwashers (8), Iockwashers (9) and nuts (10).
(1)
Replace flowrate meter bracket (6) and secure with two screws (5).
(2)
Secure hinge (11) with two screws (1), four flatwashers (2), Iockwashers (3) and nuts (4).
(3)
Replace panel assembly and lid (para 3-11c steps 4 thru 8 and step 20).
(4)
3-125
|
|
