BRANCHED ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY (CHASSIS TEST).

TM 3-6665-329-13&P

3-50 BRANCHED ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY (CHASSIS TEST).

This task covers:

Removal.

Installation.

INITIAL SETUP

Tools:

Electronic equipment tool

kit TK-100/G and TK-105/G

Removal

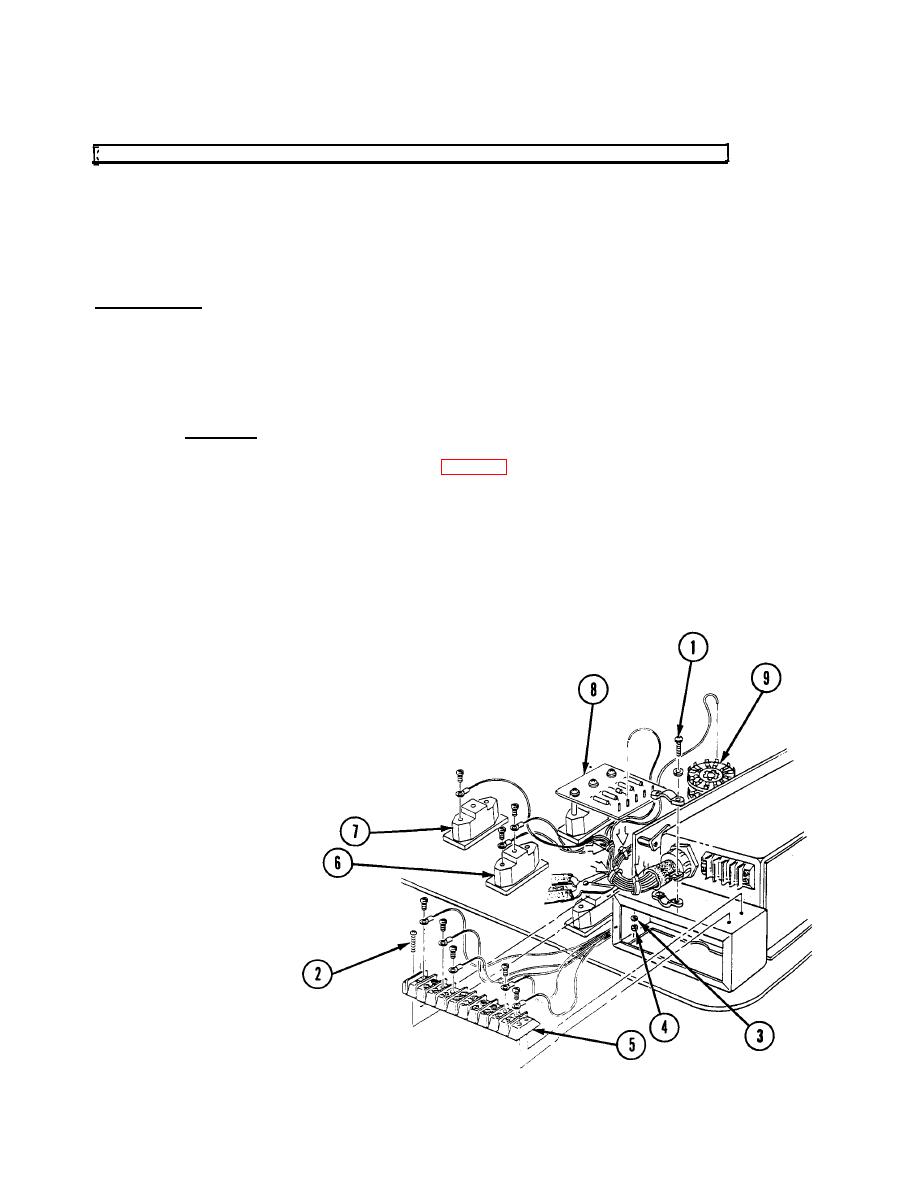

(1) Remove lid and panel assembly. (para 3-11b steps 1 thru 8).

(2) Loosen cable clamp screws (1).

(3) Cut wire ties.

(4) Remove four screws, (2), Iockwashers (3) and nuts (4).

(5) Remove terminal board (5)

(6) Remove wires 9, 5, 8, 138, and 139 from TB1 (5).

(7) Remove wires 3 and 4 from S2 (6).

(8) Remove wire 2 from S6 (7).

(9) Remove wire 1 from circuit card assembly (8).

(10) Remove wire 6 from S4 (9).
