 TM 3-6665-329-13&P
This task covers:
a.
Removal.
b.
Installation.
INITIAL SETUP
Tools:
Electonic equipment tool
kit TK-100/G
NOTE
This procedure applies to the replacement of any housing indicator on the test set.
a.
Removal

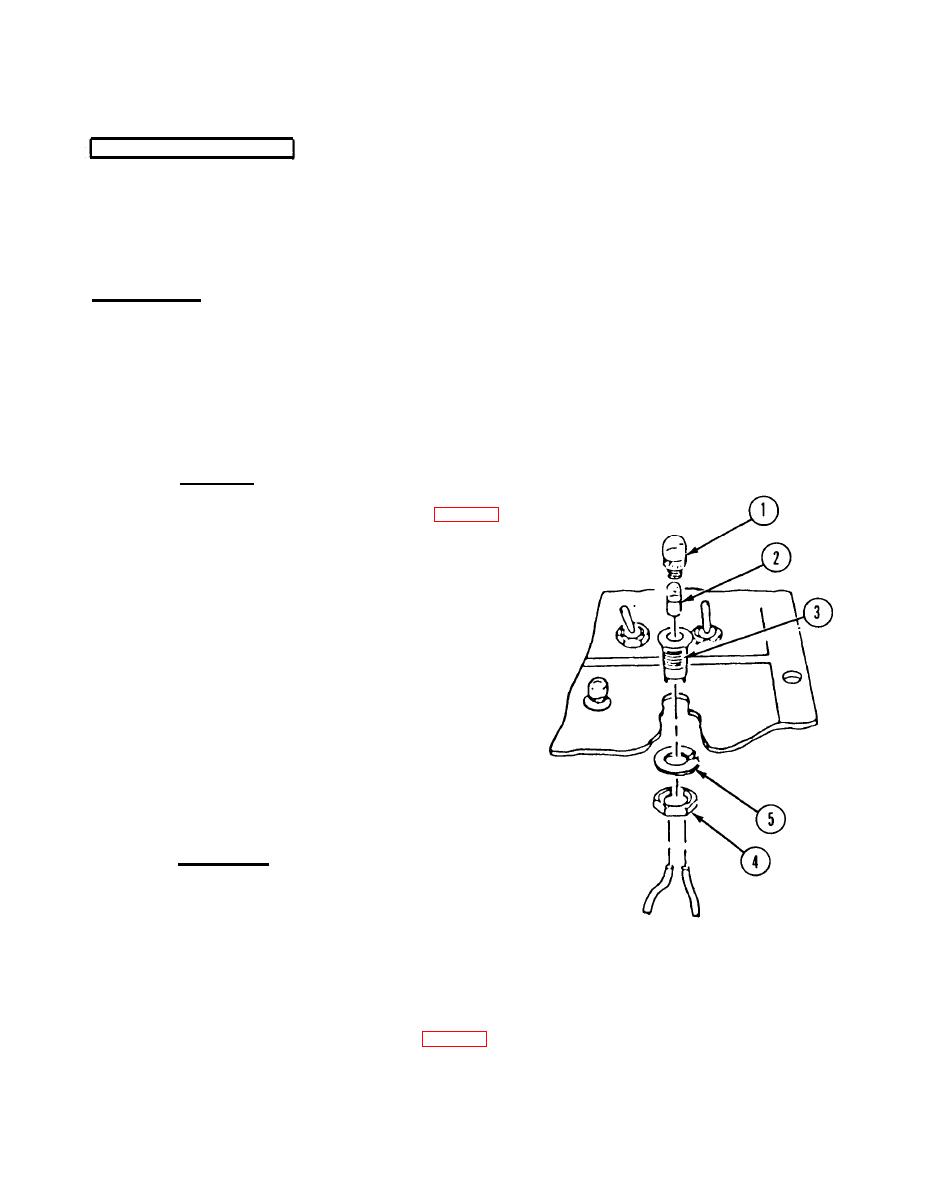

(1) Remove lid and panel assembly (para 3-11b steps 1 thru 8).
(2) Remove lens (1) and incandescent lamp (2).
(3) Unsolder wires from housing indicator (3).
(4) Remove one nut (4) and Iockwasher (5).
(5) Remove housing indicator (3).
b.
Installation.
(1) Install replacement housing indicator into front panel (3).
(2) Install one nut (4) and Iockwasher (5).
(3) Solder wires to housing indicator (3).
(4) Replace lens (1) and incandescent lamp (2).
(5) Install panel assembly and lid (para 3-11c steps 4 thru 8 and 20).
