Section IV. TROUBLESHOOTING

a. This section provides information for locating and correcting malfunctions in the test set. It

cannot list all possible malfunctions or every test/inspection and corrective action.

b. If a malfunction is not listed or corrected by a listed corrective action, refer to continuity and

voltage check paragraph 3-8. If the malfunction is still not corrected, notify your supervisor.

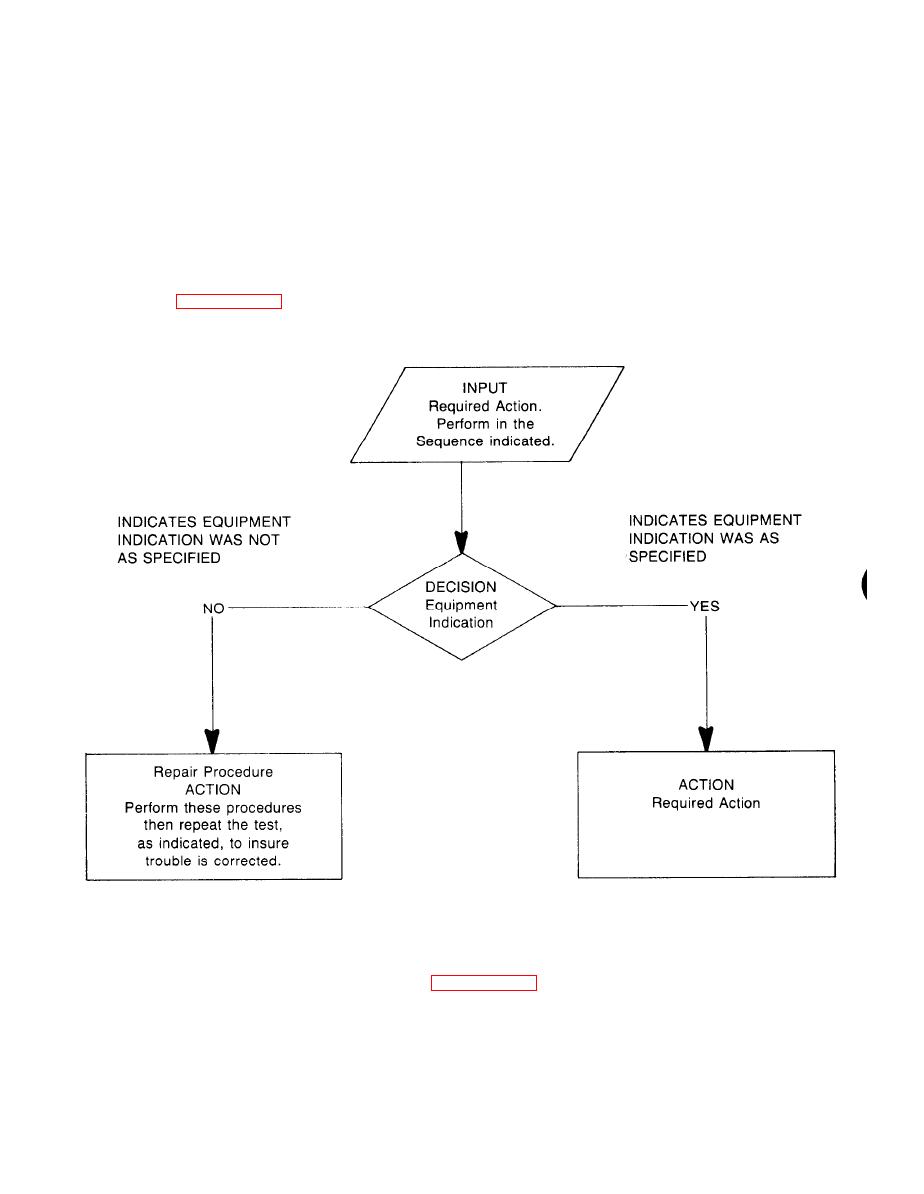

The following describes the use of the Troubleshooting logic tree.

d. The logic tree will allow for a complete test through to the end of list if everything checks out

correctly (YES decision). If there is a problem (a NO decision), the procedures to be used to identify the

problem are shown. These procedures are to be used only when a NO decision directs you to that procedure.

e. After consulting the Sympton Index in paragraph 3-7, proceed to the recommended

procedure paragraph. It is assumed that the Test Set is connected to a power source at the beginning of each

troubleshooting procedure.

3-30
