3-33 PUSHBUTTON SWITCH.
This task covers:
Removal.
a.
Installation.
b.
Tools:
Electronic equipment tool
kit TK-100/G
NOTE
This procedure applies to all test set pushbutton switches.

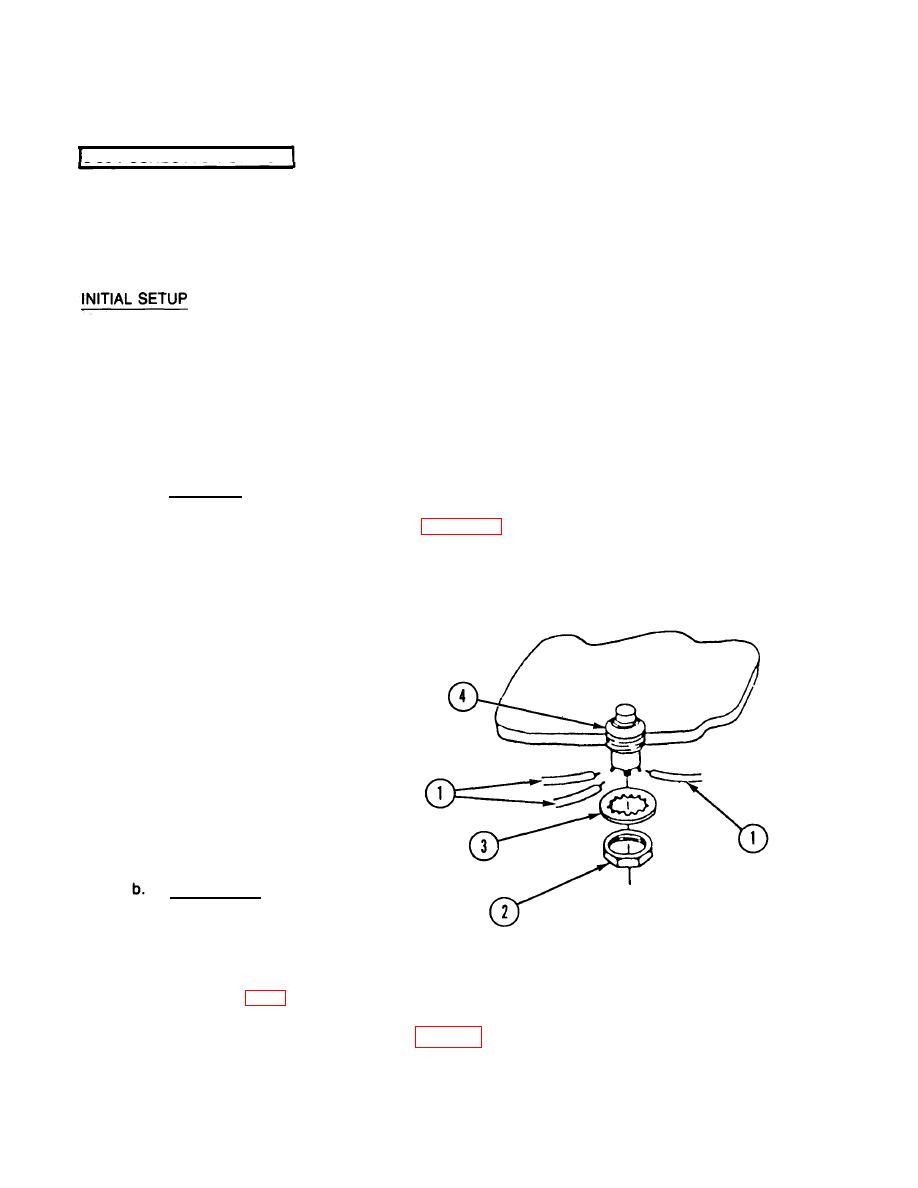

a. Removal.
(1) Remove lid and panel assembly (para 3-11b steps 1 thru 8).
(2) Remove wires (1).
(3) Remove nut (2) and Iockwasher (3).
(4) Remove pushbutton switch (4).
Installation.
(1) Install pushbutton switch (4).
(2) Install Iockwasher (3) and nut (2).
(3) Using FO-2 as a guide, connect wires (1).
(4) Install panel assembly and lid (para 3-11c steps 4 thru 8 and 20).
