FLOWRATE METER AND BRACKET ASSEMBLY |
|
||
| ||||||||||
|
|
 TM 3-6665-329-13&P
This task covers:

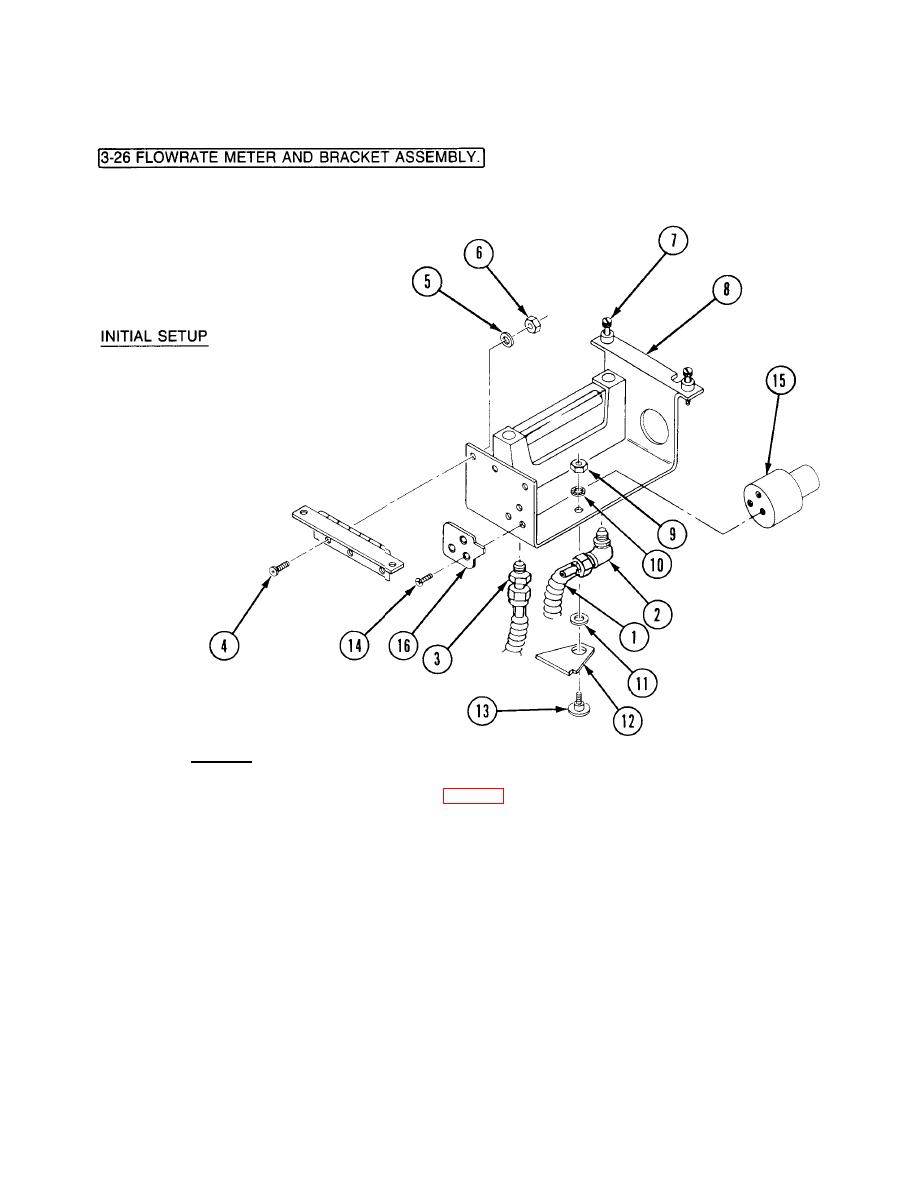

Removal.
a.
Installation.
b.
Functional Test.
c.
Tools:
Electronic equipment tool
kit TK100/G
Removal.
a.
(1) Remove lid and panel assembly (Para 3-9b steps 1 and 8).
(2) Remove nonmetallic tubing assemblies (1).
(3) Remove elbow (2) and adapter (3).
(4) Remove three screws (4), Iockwashers (5) and nuts (6).
(5) Unscrew two screws (7) and remove flowrate meter bracket assembly (8).
(6) Remove nut, (9), Iockwasher (10), spring washer (11), bracket (12), and shaft (13).
(7) Remove three screws (14) and remove bushing (15) and stop (16).
