REASSEMBLY (CONT) - TM-3-4230-209-30-P0163

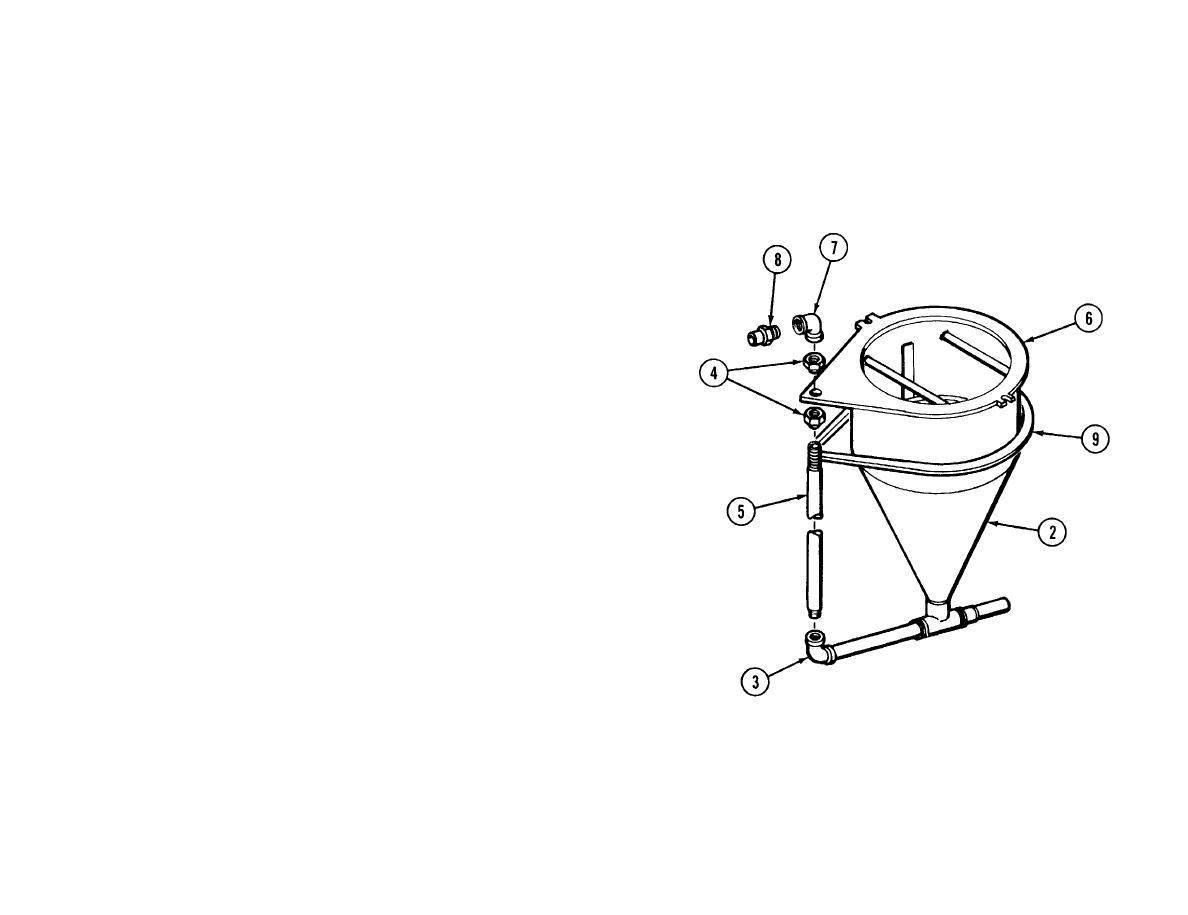

Screw one pipe locknut (4) onto the longest threaded end

Pipe locknuts (4)

Metallic pipe (5)

of metallic pipe (5). Insert metallic pipe (5) through the

Body flange (6)

body flange (6) on the body (2). Screw the other end of

metallic pipe (5) into pipe elbow (3). Screw second pipe

locknut (4) onto metallic pipe (5), protruding above the

body flange (6), and screw two pipe locknuts (4) fingertight

against body flange (6). Tighten metallic pipe (5) and two

pipe locknuts (4).

Screw pipe elbow (7) onto end of metallic pipe (5) and

Pipe elbow (7)

tighten.

Quick disconnect nect

Screw quick disconnect coupling half (8) onto pipe

elbow (7) and tighten.

coupling half (8)

Coat underside of body flange (6) with adhesive. Position

Gasket (9)

new gasket (9) form around body flange (6). Trim any

excess gasket (9) to fit.
