ADJUST RUNNING TIME AND TENSION (CONT) |
|
||
| ||||||||||
|
|
 TM 11-7035-203-23
4-24. ADJUST RUNNING TIME AND TENSION (CONT)

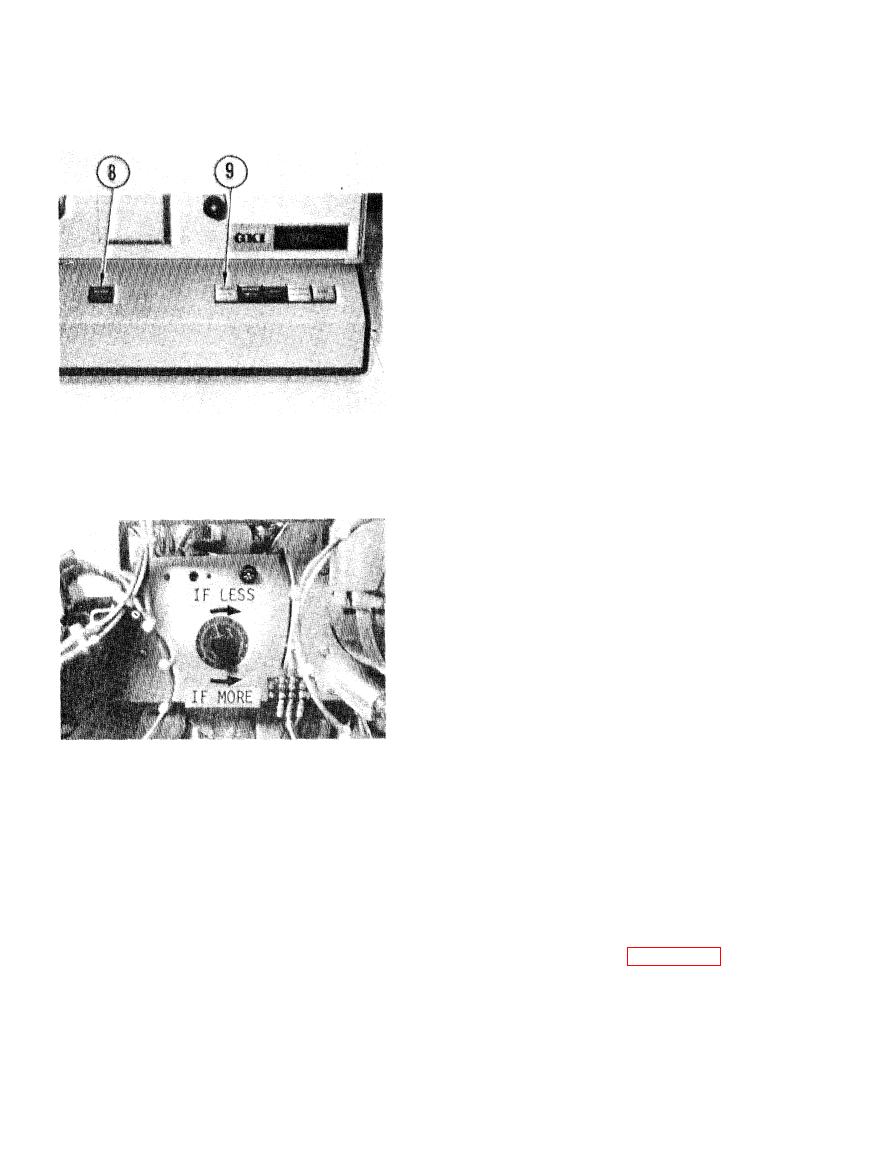

8. Press POWER on.
9. Press FORWARD and start timing.
10. When tape stops, stop timing.
If running time is 5 minutes 45
q
seconds 10 seconds, go to step
12
If running time is less than 5
q
minutes 45 seconds 10 seconds,
note running time on scratch
paper. Then turn knob several
degrees in direction shown. Go
to step 11
If running time is more than 5
q
minutes 45 seconds 10 seconds,
note running time on scratch
paper. Then turn knob several
degrees in direction shown. GO
to step 11
11. Repeat steps 9 and 10 until running
time is 5 minutes 45 seconds 10
seconds.
12. Close tape cleaner (para 4-11).
13. Unload tape.
14. Remove takeup reel.
4-40
|
|
