REMOVE/REPLACE TISSUE SPOOL MOTOR (CONT)

TM 11-7035-203-23

4-18. REMOVE/REPLACE TISSUE SPOOL MOTOR (CONT)

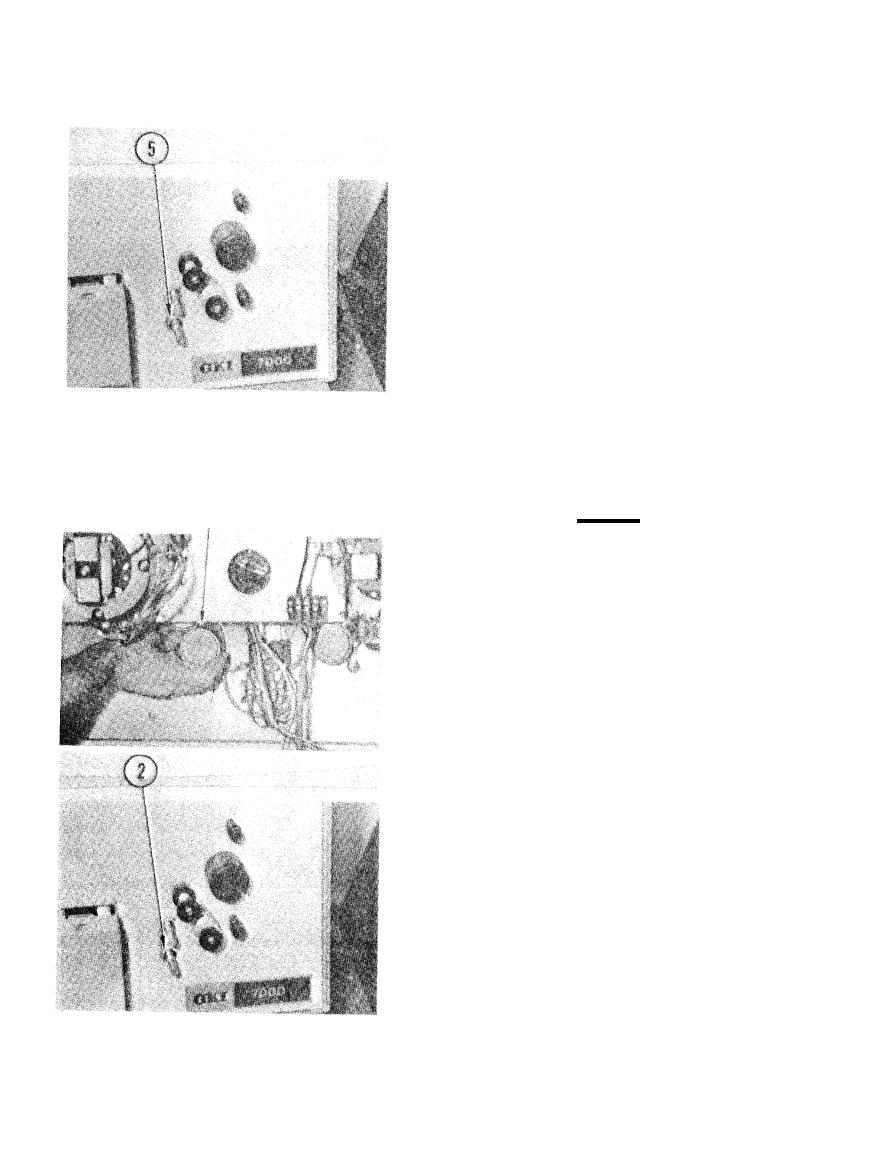

5. Remove nut and washer securing

tissue spool motor to front panel

6. Remove tissue spool motor from tape

drive.

Replace

1. Insert shaft of tissue spool motor

through rear of front panel and hold

firmly in place.

2. Replace and tighten washer and nut

on tissue spool motor shaft.

3. Attach tissue spool motor wires to

terminal board AITB1. Dress wires

to wire bundle and secure with tie

wraps.
